Technical Specifications:
Maximum capacity: 65 gallons per minute
Maximum pipe diameter: 3" (76 mm)
Voltage: 36 Volt - Wattage: 3.0 Watts
Impulse Bands (2)- Length: 9' 10" (3 M) each Width: 0.8" (20 mm)
Electronic unit measurements: 7.5"/4.7"/1.6" (190/120/40 mm )
Frequency range: 3-32 kHz
Required space: Minimum 20" (500 mm )
Programs: 3 (For pipes: ½"-1½", 2" & 3")
Power supply specifications:
Input- 120-240 Volt 50-60 Hz Output- 36 Volts 330 mA
Warranty 25 Years

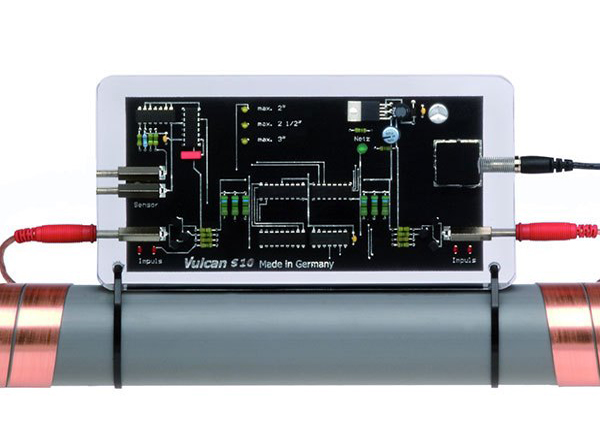

Vulcan S10 Includes: 1 Vulcan S10 electronic unit, 2 Vulcan Impulse Bands, 1 Power Supply, 6 Cable clips, 1 Product brochure, 1 Warranty card
Shipping Measurements: 20.5" x 16.9" x 5.9" - 9 lbs
Order ships via UPS
Transit Time: 5-7 Days
