Technical Specifications:
Maximum capacity: 530 gallons per minute
Maximum pipe diameter: 6" (150 mm)
Voltage: 36 Volt - Wattage: 2.5 Watts
Impulse Bands (6)- Length: 13' 2" each Width: 0.8" (20 mm)
Electronic unit measurements: 9.4"/5.6"/1.6" (240/150/40 mm )
Frequency range: 3-32 kHz
Required space: Minimum 48" (1225 mm )
Programs: 10 (For Multiple Pipe Sizes and Specific Materials)
Power supply specifications:
Input- 210/240 Volt 50-60 Hz Output- 36 Volts 600 mA
Warranty 25 Years

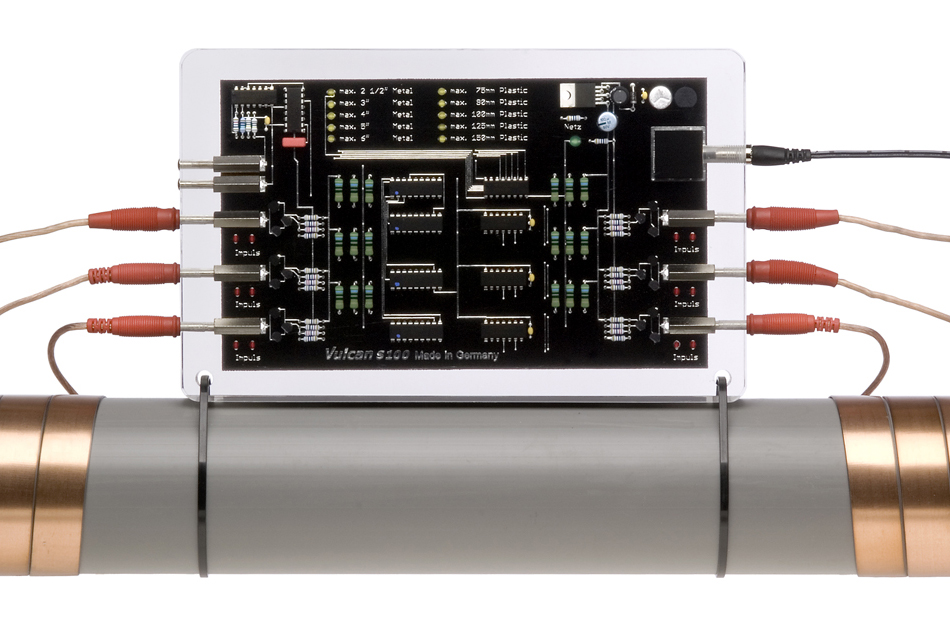

Vulcan S100 Includes: 1 Vulcan S100 electronic unit, 6 Vulcan Impulse Bands, 1 Power Supply, 14 Cable Clips, 1 Product brochure, 1 Warranty card
Shipping Measurements: 20.5" x 16.9" x 5.9" - 12 lbs
Order ships via UPS Ground
Transit Time: 5-7 Days
