Vulcan S500 Hard Water Anti-Scale System- 2200 GPM- Best Price

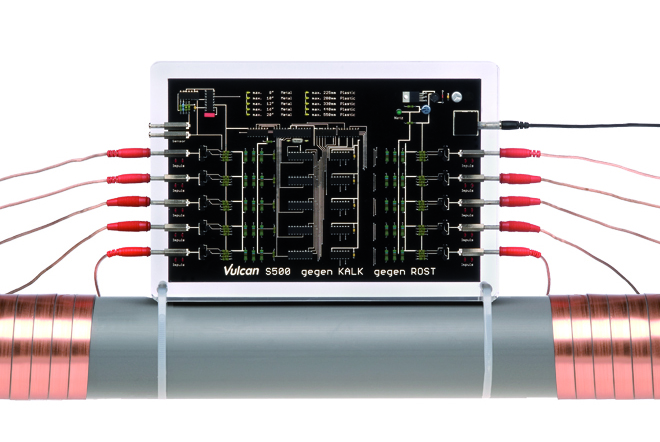

VULCAN S500 HARD WATER ANTI-SCALE SYSTEM

Commercial Unit

For pipes up to 20" (500 mm) - Max. Water Capacity- 2200 GPM

Product Number: S500



Vulcan is an eco-friendly water treatment system that prevents limescale build-up and rust. The Vulcan Impulse Technology works on the principle of physical water treatment. Electronic impulses modify the crystallization process of the liquid calcium, so the hard limescale loses its adhesiveness.



Technical Data Sheet- TDS

Treatment Guidelines for Hotels and Residential Buildings



    Contact us for the best price;  sales@techno-ms.com   512-551-0923

    $0.00

    Quantity:

    $0.00

    Continue Shopping​​​​​​​

    Quantity Discounts will be shown in Shopping Cart

    (Available for 2 or more per single item.)

    Technical Specifications:

    Maximum capacity: 2200 gallons per minute

    Maximum pipe diameter: 20" (500 mm)

    Voltage: 36 Volt - Wattage: 3.5 Watts

    Impulse Bands (10)- Length: 98' 5" each  Width: 0.8" (20 mm)

    Electronic unit measurements: 12.6"/9.7"/2"  (320/220/50 mm )

    Frequency range: 3-32 kHz

    Required space:  Minimum 16' 5" (5000 mm )

    Programs: 10 (For Multiple Pipe Sizes and Specific Materials)

    Power supply specifications:

    Input- 120/240 Volt 50-60 Hz Output- 36 Volts 600 mA

    Warranty 25 Years



    Vulcan S500 Includes: 1 Vulcan S500 electronic unit, 6 Vulcan Impulse Bands, 1 Power Supply, 22 Cable Clips, 1 Product Brochure, 1 Warranty Card

    Shipping Measurements: 27.6" x 23.6" x 19.3" - 47 lbs

    Order ships via UPS

    Transit Time: 5-7 Days
